| PRODUCT DESCRIPTION |

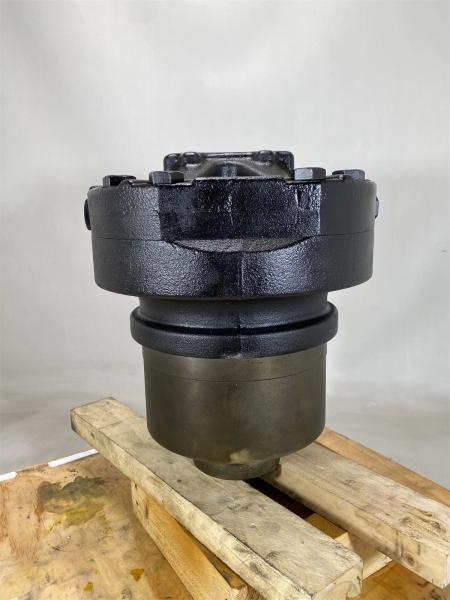

| Model: E345 | category: excavator travel motor |
| Part number: 227-6044 | Place of Origin:Other Country |
| Condition: Original & Oem | Warranty: 6 months |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, paypal, Tradeassurance |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
| Guarantee: We will check and send detailed pictures to buyers for confirmation |
The excavator travel assembly is the core component for machine movement, consisting of a hydraulic motor, reduction gearbox, sprocket, track chain, idler wheel, carrier roller, and track roller. Its key function is to convert hydraulic energy into mechanical power, enabling stable mobility across challenging terrains.
Technical Advantages
-
High-Efficiency Power System: Precision hydraulic motors paired with heavy-duty gearboxes deliver 30% higher torque output, ideal for slopes, swamps, and harsh conditions.
-
Extended Durability: Manganese steel + rubber composite tracks enhance wear resistance by 50%, with a service life exceeding 8,000 hours.
-
Smart Control: Optional electronic speed modulation enables stepless speed adjustment, balancing productivity and fuel efficiency.
Applications
Suitable for mining, earthwork, municipal projects, and mountainous terrains. Operational temperature range: -30°C to 50°C.

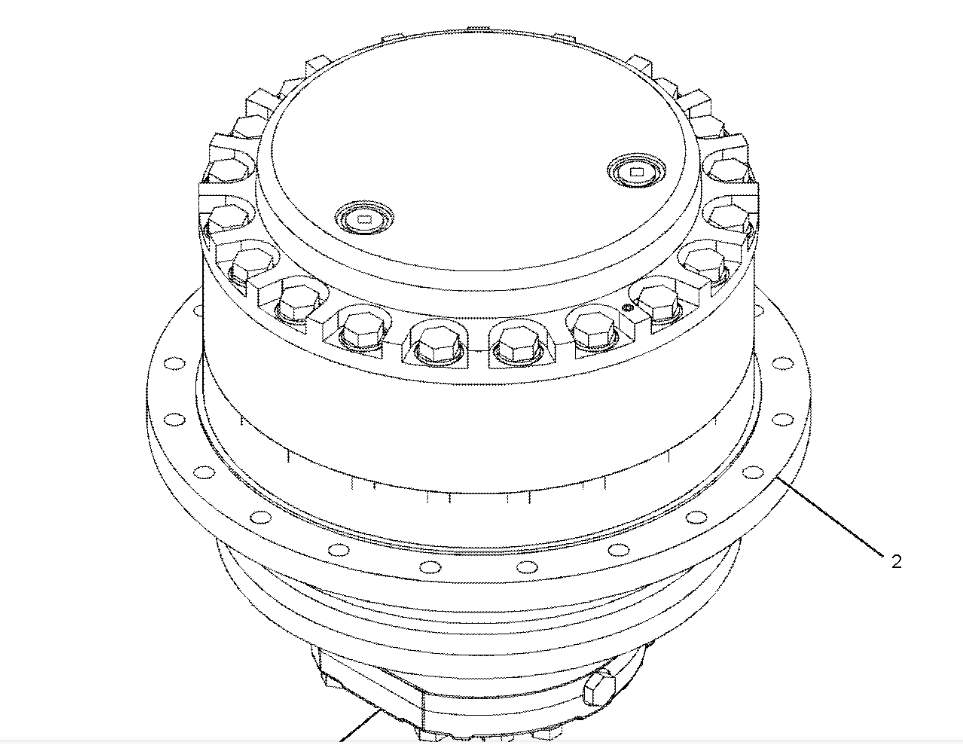

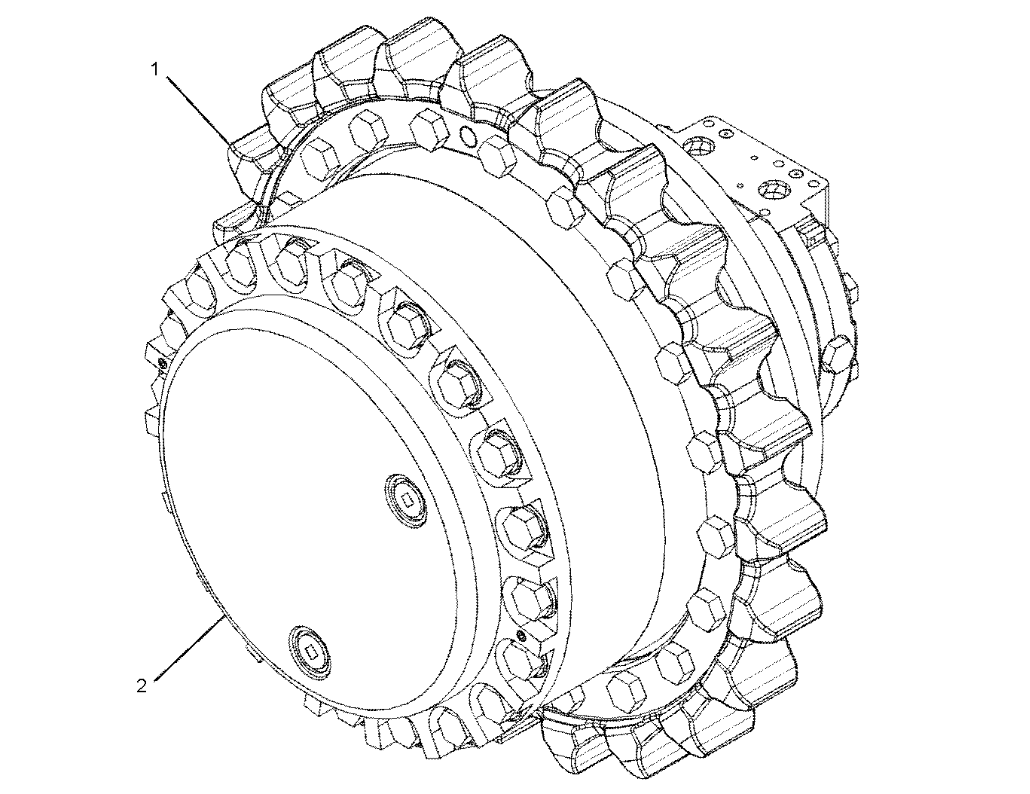

CATERPILLAR SIS
| Pos. | Part No | Qty | Parts name | Comments |
| 1. | 2R-0524 | [2] | CONE-BEARING | |
| 2. | 2R-0525 | [2] | CUP-BEARING | |
| 3. | 4I-7576 | [14] | WASHER (66.3X104X3-MM THK) | |
| 4. | 7M-8485 | [2] | SEAL-O-RING | |
| 5. | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 6. | 7Y-0662 | [4] | SHAFT-PLANETARY | |
| 7. | 199-4583 | [11] | BEARING AS | |
| 8. | 7Y-0808 B | [1] | SHIM (1.6-MM THK) | |
| 9. | 7Y-1469 | [1] | COUPLING | |
| 10. | 7Y-1470 | [1] | GEAR-SUN (21-TEETH) | |
| 11. | 7Y-1472 B | [1] | SHIM (0.15-MM THK) | |
| 12. | 7Y-1473 B | [1] | SHIM (0.3-MM THK) | |
| 13. | 7Y-1474 B | [1] | SHIM (0.4-MM THK) | |
| 14. | 7Y-1475 B | [1] | SHIM (0.5-MM THK) | |
| 15. | 7Y-1476 B | [1] | SHIM (0.6-MM THK) | |
| 16. | 7Y-1477 B | [1] | SHIM (0.7-MM THK) | |
| 17. | 7Y-1478 B | [1] | SHIM (0.8-MM THK) | |
| 18. | 7Y-1479 B | [1] | SHIM (1-MM THK) | |
| 19. | 7Y-1480 B | [1] | SHIM (1.6-MM THK) | |
| 20. | 7Y-1482 | [1] | CARRIER-PLANETARY | |
| 21. | 7Y-1483 | [1] | GEAR-RING (63-TEETH) | |
| 22. | 7Y-1485 | [1] | CARRIER-PLANETARY | |
| 23. | 7Y-1487 | [1] | GEAR-RING (85-TEETH) | |
| 24. | 7Y-1488 | [1] | CARRIER AS | |
| | 7Y-0656 | [3] | SHAFT-PLANETARY | |
| 25. | 7Y-1491 | [1] | GEAR-SUN (21-TEETH) | |
| 26. | 7Y-1493 | [1] | SPACER (8.7X50X14-MM THK) | |
| 27. | 7Y-1495 | [3] | GEAR-PLANETARY (29-TEETH) | |
| 28. | 7Y-1498 | [1] | COVER | |
| 29. | 7Y-1499 | [3] | GEAR-PLANETARY (20-TEETH) | |
| 30. | 7Y-1504 | [4] | GEAR-PLANETARY (20-TEETH) | |
| 31. | 7Y-5235 M | [20] | BOLT (M24X3X190-MM) | |
| 32. | 110-7217 | [2] | RING-RETAINING | |
| 33. | 114-1541 | [6] | PIN-DOWEL | |
| 34. | 169-5559 | [1] | GEAR-SUN (26-TEETH) | |
| 35. | 199-4719 | [1] | GEAR-COUPLING | |
| 36. | 200-3489 | [1] | HOUSING-MOTOR | |
| 37. | 200-3490 | [1] | HOUSING-GEAR | |
| 38. | 205-9025 | [1] | SEAL GP-DUO-CONE | |
| | 205-9024 | [2] | RING-TORIC | |
| 39. | 227-6048 | [12] | WASHER (26X40X4-MM THK) | |
| 40. | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 41. | 199-4582 | [3] | BEARING AS | |
| 42. | 095-0891 | [7] | PIN-SPRING | |
| 43. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 44. | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) | |
| 45. | 6V-8133 M | [12] | BOLT (M24X3X80-MM) | |
| 46. | 7Y-1484 | [1] | SPACER (191X221X8.5-MM THK) | |
| 47. | 7Y-1492 | [2] | SPACER (67X101.1X10-MM THK) | |
| 48. | 8C-5240 | [1] | SEAL-O-RING | |
| 49. | 8T-3957 M | [10] | BOLT-SOCKET HEAD (M12X1.75X30-MM) | |
| 50. | 8T-4167 | [20] | WASHER-HARD (26X44X4-MM THK) | |
| 51. | 8T-4240 | [3] | RING-RETAINING | |
| 52. | 1U-8846 B | | SEALANT-GASKET | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
FAQ:
- What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and trade assurance.
