Belparts ZX290L-5G ZX330-5G ZX350H-3 ZX350K-5G Hitachi final drive 9281920 9281921 9281842 9281841 travel motor
The excavatortravel motor assembly is a critical component of the machine’s chassis system, responsible for supporting the entire weight and providing mobility. It typically consists of tracks, sprockets, idlers, rollers (carrier and track), and travel motors. The design of the undercarriage directly impacts the excavator’s stability, traction, and operational efficiency. A high-quality undercarriage ensures smooth movement across rough terrain, minimizes slippage and wear, and offers excellent durability for demanding applications in mining, construction, and agriculture.
| PRODUCT DESCRIPTION |
| Model: 9190221 9190222 9232360 9212584 9195488 9231673 FOR Hitachi ZX330 ZX350H ZX350K ZX360LC-HHE ZX370MTH EXCAVATOR PARTS TRAVEL ASSEMBLY FINAL DRIVE TRAVEL MOTOR TRAVEL GEARBOX AFTERMARKET ORIGINAL | Ategory: Final Drive |
| Brand:TQ | Place of Origin:Other Country |
| Condition: Original & Oem | Warranty: 12 months |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
| Guarantee: We will check and send detailed pictures to buyers for confirmation |

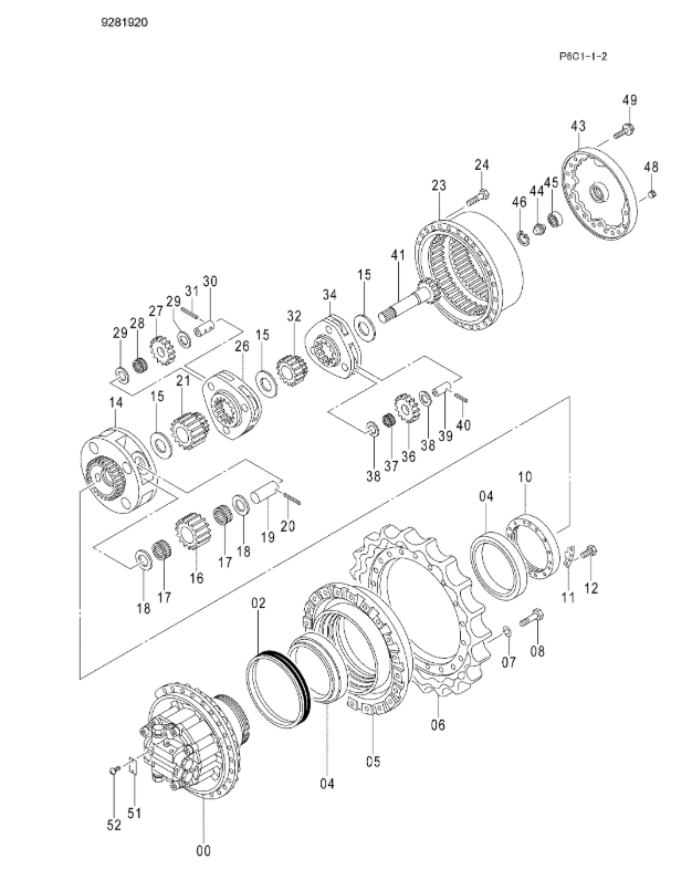

| Pos. | Part No | Qty | Parts name | Comments |

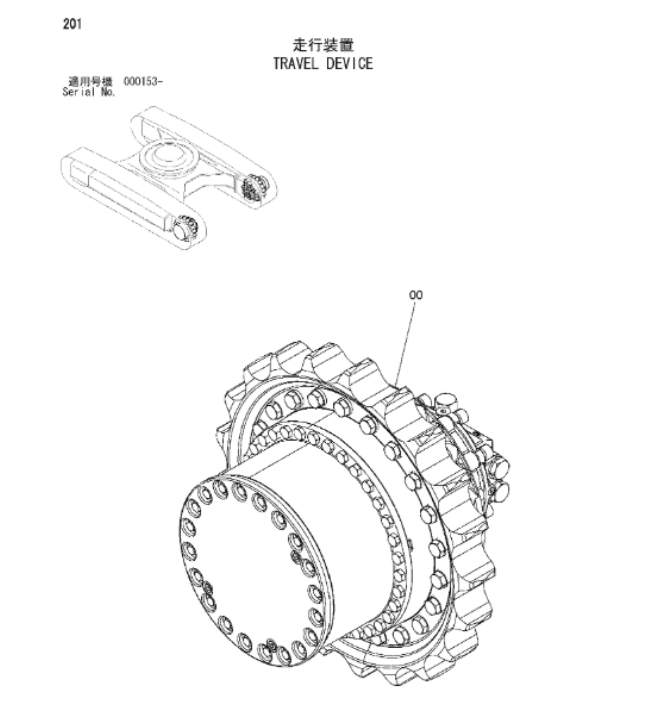

| | 9281920 | [1] | TRAVEL DEVICE | I 9281921 |
| | 9281921 | [1] | TRAVEL DEVICE | |
| 0 | 9281841 | [1] | MOTOR;OIL | I 9281842 |
| 0 | 9281842 | [1] | MOTOR;OIL | |
| 2 | 4664392 | [1] | SEAL;GROUP | |
| 4 | 4629674 | [2] | BRG.;ROL. | |
| 5 | 1033164 | [1] | DRUM | |
| 6 | 1033163 | [1] | SPROCKET | |
| 7 | A590922 | [22] | WASHER;SPRING | |
| 8 | J932265 | [22] | BOLT | |
| 10 | 3094717 | [1] | NUT | |
| 11 | 4470326 | [1] | PLATE;LOCK | |
| 12 | J901225 | [2] | BOLT | |
| 14 | 1032599 | [1] | CARRIER | |
| 15 | 4621530 | [3] | SPACER | |
| 16 | 3103555 | [4] | GEAR;PLANETARY | |
| 17 | 4628768 | [8] | BRG.;NEEDLE | |
| 18 | 4269470 | [8] | PLATE;THRUST | |
| 19 | 4269452 | [4] | PIN | |
| 20 | 4207947 | [4] | PIN;SPRING | |
| 21 | 3103554 | [1] | GEAR;SUN | |
| 23 | 1032600 | [1] | GEAR;RING | |
| 24 | J931640 | [34] | BOLT | |
| 26 | 1032598 | [1] | CARRIER | |
| 27 | 3103553 | [3] | GEAR;PLANETARY | |
| 28 | 4445531 | [3] | BRG.;NEEDLE | |
| 29 | 4284521 | [6] | PLATE;THRUST | |
| 30 | 4269451 | [3] | PIN | |
| 31 | 4197763 | [3] | PIN;SPRING | |
| 32 | 3103552 | [1] | GEAR;SUN | |
| 34 | 1032597 | [1] | CARRIER | |
| 36 | 3103551 | [3] | GEAR;PLANETARY | |
| 37 | YB00001367 | [3] | BRG.;NEEDLE | |
| 38 | 4642993 | [6] | PLATE;THRUST | |
| 39 | 4269472 | [3] | PIN | |
| 40 | 4192020 | [3] | PIN;SPRING | |
| 41 | 2051884 | [1] | SHAFT;PROP. | |
| 43 | 1032596 | [1] | COVER | |
| 44 | 4277474 | [1] | PIN;STOPPER | |
| 45 | 4278168 | [1] | BRG.;BALL | |
| 46 | 930451 | [1] | RING;RETAINING | |
| 48 | 4245797 | [3] | PLUG |
Mainly engaged in excavator hydraulic pumps, final drive, travel motors, swing motors, distribution valves,control valve assy,reduction gearbox,cylinder assy and various hydraulic spare parts.
Excavator hydraulic one-stop service, we can provide Komatsu, Hitachi, Kato, Doosan, Hyundai, Sany, Liugong, Sunward Intelligent, hydraulic pumps of various tonnage models, distribution valves, travel assemblies, travel motors, swing motors and hydraulic spare parts.
