Belparts travel motor EC460B EC460C EC480D EC480DHR EXCAVATOR PARTS final drive VOE14508165
The excavatortravel motor assembly is a critical component of the machine’s chassis system, responsible for supporting the entire weight and providing mobility. It typically consists of tracks, sprockets, idlers, rollers (carrier and track), and travel motors. The design of the undercarriage directly impacts the excavator’s stability, traction, and operational efficiency. A high-quality undercarriage ensures smooth movement across rough terrain, minimizes slippage and wear, and offers excellent durability for demanding applications in mining, construction, and agriculture.
| PRODUCT DESCRIPTION |
| Model: VOE14508165 FOR VOLVO EC460B EC460C EC480D EC480DHR PL4608 PL4611 EXCAVATOR HYDRAULIC TRAVEL MOTOR AFTERMARKET HIGH QUALITY ORIGINAL | Ategory: Walking motor assembly |
| Brand:TQ | Place of Origin:Other Country |
| Condition: Original & Oem | Warranty: 12 months |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
| Guarantee: We will check and send detailed pictures to buyers for confirmation |
Our main products are Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality. Until now, our products have been exported to more than 198 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with our own brand "Belparts", which is highly praised by foreign customers and enjoys a high reputation.
| |

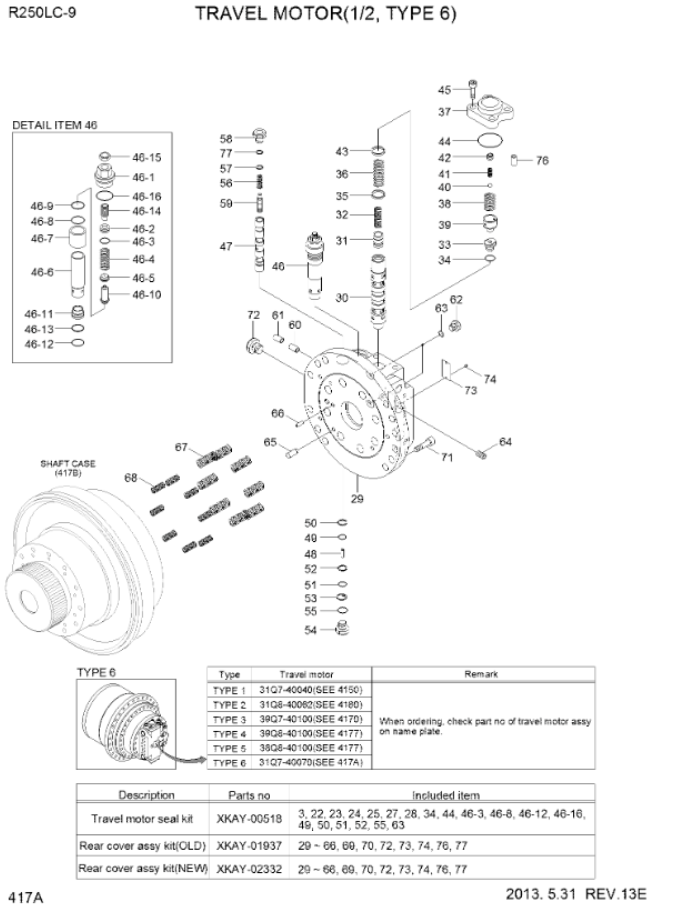

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31Q7-40070 | [2] | TRAVEL MOTOR ASSY | |
| *-1. | 31Q7-40150 | [1] | TRAVEL MOTOR | |
| 29 | XKAY-00475 | [1] | COVER-REAR | OLD |
| 29 | XKAY-02334 | [1] | COVER-REAR | NEW |
| *-13. | XKAY-01932 | [1] | SPOOL KIT | |
| N30. | XKAY-01933 | [1] | SPOOL | |
| N31. | XKAY-00478 | [2] | CHECK | |
| N32. | XKAY-00479 | [2] | SPRING | |
| N33. | XKAY-00480 | [2] | PLUG | |
| N34. | XKAY-01176 | [2] | O-RING | |
| 35 | XKAY-00482 | [2] | SEAT-SPRING | |
| 36 | XKAY-00483 | [2] | SPRING | |
| 37 | XKAY-00484 | [2] | COVER | |
| 38 | XKAY-00485 | [2] | SPRING | |
| 39 | XKAY-00486 | [2] | SPOOL | |
| 40 | XKAY-00487 | [2] | BALL-STEEL | |
| 41 | XKAY-00488 | [2] | SPRING | |
| 42 | XKAY-00489 | [2] | PLUG | |
| 43 | XKAY-00490 | [2] | SEAT-SPRING | |
| 44 | XKAY-01177 | [2] | O-RING | |
| 45 | XKAY-00492 | [8] | BOLT-WRENCH | |
| 46 | XKAY-01934 | [2] | RELIEF VALVE ASSY | |
| 46-1. | XKAY-00678 | [1] | PLUG | |
| 46-2. | XKAY-00679 | [1] | GUIDE | |
| 46-3. | XKAY-01412 | [1] | O-RING | |
| 46-4. | XKAY-00680 | [1] | SPRING | |
| 46-5. | XKAY-00681 | [1] | SEAT-SPRING | |
| 46-6. | XKAY-00682 | [1] | SLEEVE | |
| 46-7. | XKAY-00683 | [1] | PISTON | |
| 46-8. | XKAY-01413 | [1] | O-RING | |
| 46-9. | XKAY-00684 | [2] | RING-BACK UP | |
| 46-10. | XKAY-00685 | [1] | POPPET | |
| 46-11. | XKAY-00686 | [1] | SEAT-POPPET | |
| 46-12. | XKAY-01414 | [1] | O-RING | |
| 46-13. | XKAY-00687 | [2] | RING-BACK UP | |
| 46-14. | XKAY-01098 | [1] | SCREW-ADJUST | |
| 46-15. | XKAY-00689 | [1] | NUT-HEX | |
| 46-16. | XKAY-00668 | [1] | O-RING | |
| 47 | XKAY-00494 | [1] | SPOOL | |
| 48 | XKAY-00826 | [1] | GUIDE | |
| 49 | XKAY-01408 | [1] | O-RING | |
| 50 | XKAY-00497 | [1] | RING-BACK UP | |
| 51 | XKAY-01409 | [1] | O-RING | |
| 52 | XKAY-00499 | [1] | RING-BACK UP | |
| 53 | XKAY-00500 | [1] | RING-SNAP | |
| 54 | XKAY-00501 | [3] | PLUG | |
| 55 | XKAY-00900 | [4] | O-RING | |
| 56 | XKAY-00502 | [1] | SPRING | |
| 57 | XKAY-00503 | [1] | SEAT-SPRING | |
| 58 | XKAY-00504 | [1] | PLUG | |
| 59 | XKAY-00505 | [1] | SPOOL | |
| 60 | XKAY-00506 | [2] | ORIFICE | |
| 61 | XKAY-00507 | [2] | ORIFICE | |
| 62 | XKAY-00508 | [3] | PLUG | |
