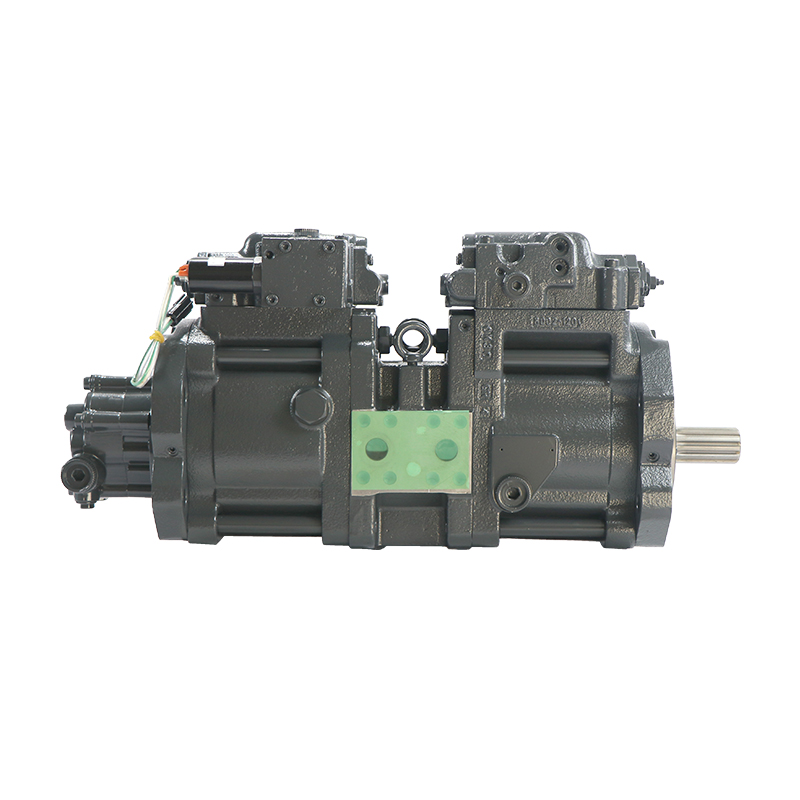

Belparts excavator main pump DX140LCR DX140LC DX160LC hydraulic pump K1024107A K1040160A for doosan
Product Description
Product name: Excavator Hydraulic pump
Place of Origin: China(mainland)
Model: DX140LCR DX140LC DX160LC
Part number: K1024107A K1040160A
MOQ: 1 PCS
Payment term: T/T, trade assurance,PayPal
Delivery time: Within 1~7 days after receiving the payment
Packing: Standard exporting packing or as required
Product name | Excavator Hydraulic pump |
Place of Origin: | China(mainland) |
Model: | DX140LCR DX140LC DX160LC |
Part number: | K1024107A K1040160A |
MOQ: | 1 PCS |
Payment term: | T/T, trade assurance,PayPal |
Delivery time: | Within 1~7 days after receiving the payment |
Packing: | Standard exporting packing or as required |

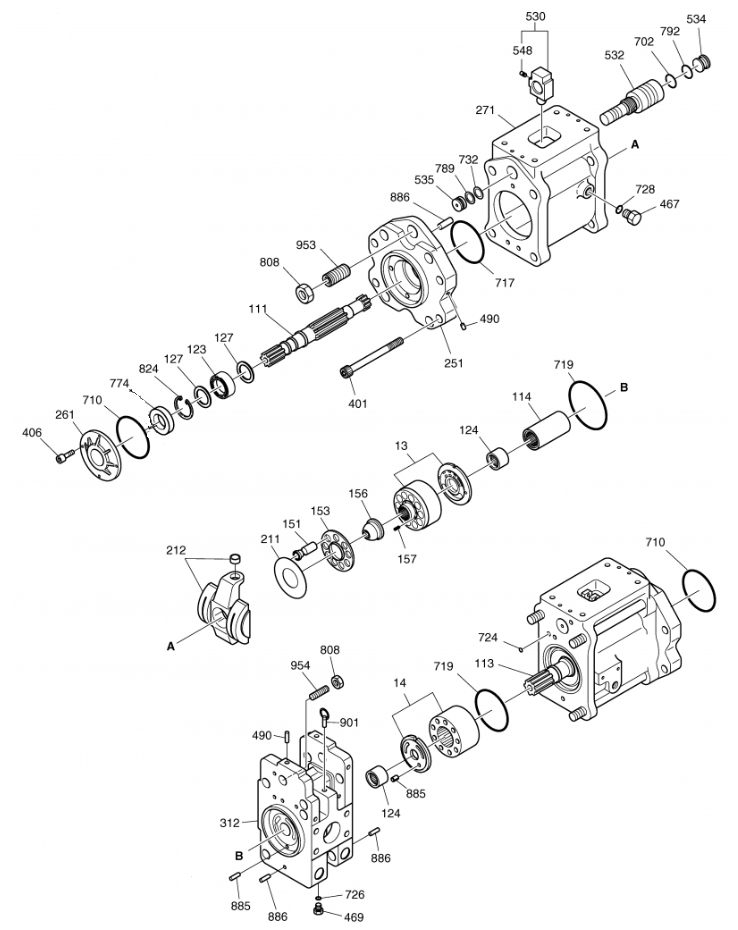

| # | Part No | Part Name | Comment | Qty. | Price request |
| 153 | K9005451 | PLATE, PUSH | | 2 | |
| 156 | K9005443 | BUSH, SPHERICAL | | 2 | |
| 157 | K9005442 | SPRING, CYLINDER | | 18 | |
| 211 | 1.412-00104 | PLATE, SHOE | | 2 | |
| 212 | K9005446 | SWASH PLATE ASS'Y | 1 kg | 2 | |
| - | K1024107A | PUMP, MAIN | 141 kg | 1 | |
| 13 | 410-00009 | CYLINDER BLOCK ASS'Y(R.H) | 3 kg | 1 | |
| 14 | 410-00010 | CYLINDER BLOCK ASS'Y(L.H) | 3 kg | 1 | |
| 111 | K9005440 | SHAFT, DRIVE(FRONT) | 1 kg | 1 | |
| 113 | K9005441 | SHAFT, DRIVE(REAR) | 2 kg | 1 | |
| 114 | 414-00039 | COUPLING, SPLINE | | 1 | |
| 123 | 1.109-00075 | BEARING, ROLLER | | 2 | |
| 124 | 1.109-00048 | BEARING, NEEDLE | | 2 | |
| 127 | 114-00343 | SPACER, BEARING | | 4 | |
| 151 | K9005444 | PISTON & SHOE ASS'Y | | 2 SET | |
| 251 | 1.197-00012 | SUPPORT, SWASH | 6 kg | 2 | |
| 261 | 462-00025 | COVER, SEAL(F) | 1 kg | 1 | |
| 271 | 1.402-00089 | CASING, PUMP | 11 kg | 2 | |
| 312 | 1.451-00084 | BLOCK, VALVE | | 1 | |
| 401 | 120-00188 | BOLT, HEX SOCKET | | 8 | |
| 406 | S2204663 | BOLT, HEX SOCKET HEAD | | 4 | |
| 467 | 2181-1950D3 | PLUG, RECHECK | | 3 | |
| 469 | 1.181-00146 | PLUG, VP | | 2 | |
| 490 | 181-00519 | PLUG | NPTF1 1/16 | 15 | |
| 530 | K9005445 | TILTING PIN ASS`Y | | 2 | |
| 532 | 409-00044 | PISTON, SERVO | | 2 | |
| 534 | 416-00010 | STOPPER(L) | | 2 | |
| 535 | 416-00011 | STOPPER(R) | | 2 | |
| 548 | 1.123-00006 | PIN | | 2 | |
| 702 | S8010305 | O-RING 4DG-30 | | 2 | |
| 710 | S8010855 | O-RING 1BG-85 | | 2 | |
| 717 | S8011201 | O-RING | | 2 | |
| 719 | S8011151 | O-RING | | 2 | |
| 724 | S8000081 | O-RING | | 16 | |
| 726 | S8000111 | O-RING | 1BP11 | 2 | |
| 728 | S8000181 | O-RING | 1BP18 | 3 | |
| 732 | S8000165 | O-RING | | 2 | |
| 774 | 180-00383 | SEAL, OIL | | 1 | |
| 789 | S8060161 | RING, BACK-UP | 5 kg | 2 | |
| 792 | S8060301 | RING, BACK-UP | | 2 | |
| 808 | S4012933 | NUT (M16X2.0) | | 4 | |
| 824 | S6500350 | RING, RETAINING | | 2 | |
| 885 | S5710881 | PIN, PARALLEL | | 2 | |
| 886 | S5740870 | PIN, SPRING | | 4 | |
| 901 | S3140025 | BOLT, EYE | | 2 | |
| 953 | S3527808 | SCREW, SET M16X30L | | 2 | |
| 954 | 120-00187 | SCREW, ADJUSTING | | 2 | |
| * | 2401-9236AKT | SEAL KIT, PUMP | | 1 | |
