Excavator parts K3V112DT-9N24-14T EC210 EC240 XE215 LG225 main pump for Volvo
Technical Parameters:
| Parameter | Value |
| Pump number | SA 1142-00012 |
| Product | Volvo Hydraulic Pump |
| Warranty | 1 Year |
| Part Name | Hydraulic Pump Assembly |
| Excavator Model | ЕС210 |
| Model | EC210 EC240 XE215 LG225 |
| Quality | Made In China |
| Pump Type | Pump for Heavy Excavator Machinery, Pump for Hydraulic Excavator |

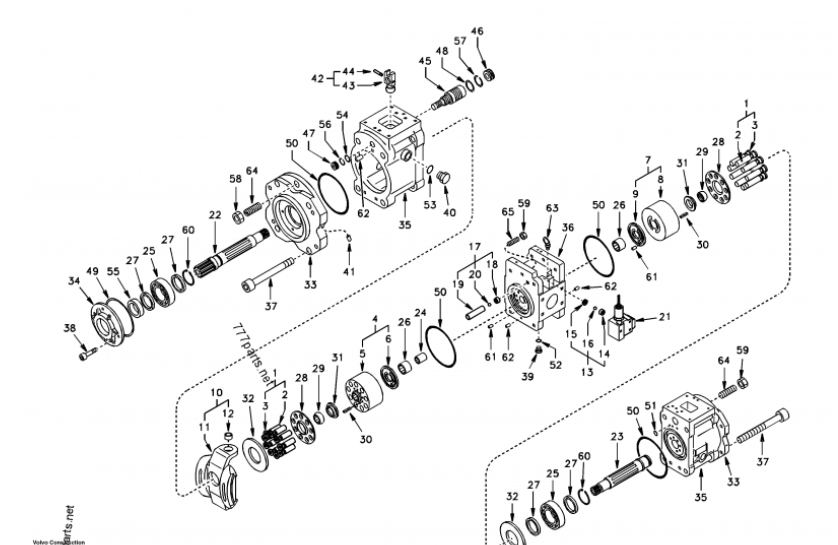

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
| | SA 1142-00012 | Pump more | 1 | |
| 1 | SA 8230-14650 | Piston | 2 | |
| 2 | VOE 14500003 | Piston | 9 | |
| 3 | VOE 14500002 | Seat | 9 | |
| 4 | SA 8230-28580 | Cylinder | 1 | |
| 5 | SA 8230-28560 | Block | 1 | |
| 6 | VOE 14500001 | Plate | 1 | |
| 7 | SA 8230-28590 | Cylinder | 1 | |
| 8 | SA 8230-28560 | Block | 1 | |
| 9 | VOE 14500000 | Plate | 1 | |
| 10 | SA 8230-09800 | Plate | 2 | |
| 11 | SA 8230-30540 | Plate | 1 | |
| 12 | VOE 14500012 | Bushing | 1 | |
| 13 | SA 7223-00450 | Check valve more | 2 | |
| 14 | SA 7223-00500 | Seat | 1 | |
| 15 | SA 7223-00520 | Guard | 1 | |
| 16 | SA 9676-73200 | Ball more | 1 | |
| 17 | SA 7223-00460 | Check valve | 2 | |
| 18 | SA 7223-00500 | Seat | 1 | |
| 19 | SA 7223-00540 | Guard | 1 | |
| 20 | SA 9676-73200 | Ball more | 1 | |
| 21 | SA 8230-09020 | Valve more | 1 | |
| 22 | SA 8230-09100 | Shaft | 1 | |
| 23 | SA 8230-09070 | Shaft | 1 | |
| 24 | SA 8230-09660 | Coupling | 1 | |
| 25 | SA 8230-26610 | Roller Bearing more | 2 | |
| 26 | SA 8230-26700 | Needle Bearing more | 2 | |
| 27 | SA 8230-14530 | Spacer | 4 | |
| 28 | SA 8230-09370 | Plate | 2 | |
| 29 | SA 8230-09680 | Bushing more | 2 | |
| 30 | SA 8230-09710 | Spring | 18 | |
| 31 | SA 8230-09670 | Spacer | 2 | |
| 32 | SA 8230-21920 | Plate | 2 | |
| 33 | SA 8230-08940 | Support | 2 | |
| 34 | SA 8230-09350 | Cover | 1 | |
| 35 | SA 8230-08930 | Body | 1 | |
| 36 | SA 8230-08980 | Valve assembly | 1 | |
| 37 | SA 8230-09690 | Bolt | 8 | |
| 38 | SA 9016-10804 | Bolt more | 4 | |
| 39 | SA 9415-11021 | Plug more | 3 | |
| 40 | SA 9415-11051 | Plug more | 4 | |
| 41 | SA 7242-11040 | Plug more | 21 | |
| 42 | SA 8230-09790 | Pin | 2 | |
| 43 | SA 8230-09320 | Pin | 1 | |
| 44 | SA 7223-00570 | Pin | 1 | |
| 45 | SA 8230-09250 | Piston | 2 | |
| 46 | SA 8230-09640 | Stop | 2 | |
| 47 | SA 8230-09650 | Stop | 2 | |
| 48 | SA 9511-22035 | O-ring more | 2 | |
| 49 | SA 9511-22095 | O-ring more | 1 | |
| 50 | SA 9511-22145 | O-ring more | 4 | |
| 51 | SA 9511-12008 | O-ring more | 16 | |
| 52 | SA 9511-12011 | O-ring more | 8 | |
| 53 | SA 9511-12024 | O-ring more | 4 | |
| 54 | SA 9511-12018 | O-ring more | 2 | |
| 55 | SA 8230-26900 | Seal more | 1 | |
| 56 | SA 9566-10180 | Ring | 2 | |
| 57 | SA 9566-20350 | Ring | 2 | |
| 58 | SA 8230-25620 | Nut | 2 | |
| 59 | SA 9111-12000 | Nut more | 2 | |
| 60 | SA 8230-25980 | Ring | 2 | |
| 61 | SA 8230-26430 | Plate | 2 | |
| 62 | SA 7223-00660 | Spring Pin | 4 | |
| 63 | SA 8230-25450 | Eye Bolt | 2 | |
Applications:
The Belparts Hydraulic Pump is a high-quality pump designed to provide optimal performance in even the most demanding conditions. Its model number, K3V112DT-9N24-14T EC210 EC240, is a testament to its efficiency and reliability. This pump is perfect for heavy excavator machinery, such as those used in mining and construction. The product’s quality is backed by its place of origin, ensuring that it is made to the highest standards.
The Belparts Hydraulic Pump is part of the SA 1142-00012 series and is designed to provide superior performance in a variety of applications. This pump is perfect for excavator hydraulic pump units, providing a reliable and efficient source of power for heavy machinery. Its 1-year warranty ensures that you can rely on this product to provide optimal performance for years to come.
The Belparts K3V112DT-9N24-14T EC210 EC240 XE215 LG225 Hydraulic Pump Excavator Parts is the perfect choice for anyone in need of a high-quality pump for heavy excavator machinery. Its reliability, efficiency, and durability make it a top choice for those in the mining, construction, and excavation industries. Order yours today and experience the power and performance of this exceptional hydraulic pump unit.
