Introducing the EX200-3, EX200LC-3, EX200-2, and EX200LC-2 Hydraulic Cylinder Assemblies: Unmatched Performance and Durability
Engineered with precision and built to last, the EX200-3, EX200LC-3, EX200-2, and EX200LC-2 hydraulic cylinder assemblies are the ultimate solution for all your lifting and pressing needs. These high-quality cylinders are designed to deliver exceptional performance, reliability, and durability, making them the perfect choice for a wide range of industrial applications.
Material:Steel
Product Name: Excavator Hydraulic Cylinder Assy
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Part number:4250223 4250224 4314778 4250225 4287889
Package Details:Export Wooden Box
Weight:110KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Appliion | Excavator |
| Part name | Cylinder assy |
| Part number | 4250223 4250224 4314778 4250225 4287889 |
| Model | EX200-3 EX200LC-3 EX200-2 EX200LC-2 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 110KG |
| Brand | Belparts |

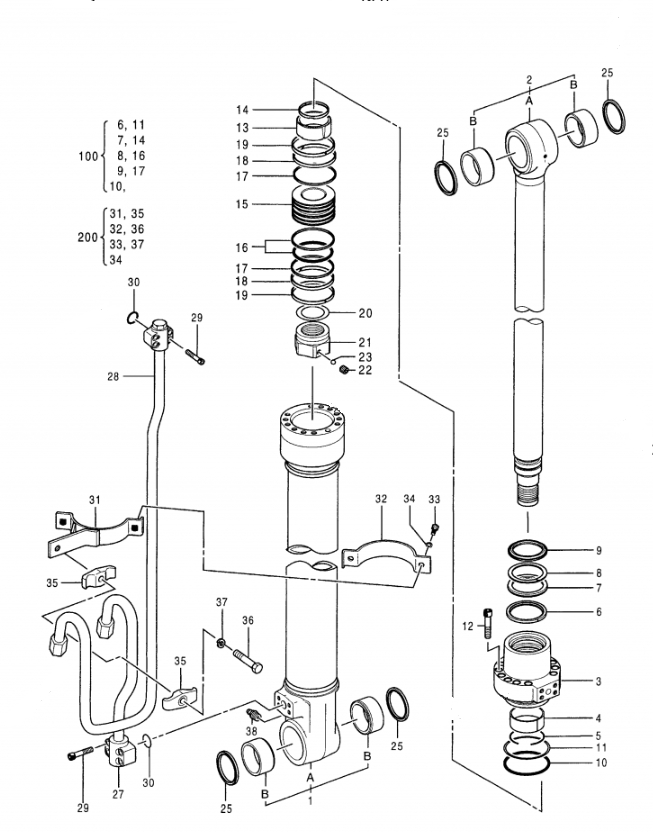

| # | Part No | Part Name | Qty. | Price request |
| | 4250225 | CYL.; BUCKET | 1 | |
| 139 | 4286781 | . CYL. (PIPELESS) | 1 | |
| 1 | 4286782 | .. TUBE; CYL. ASS'Y | | |
| 1A | 0410001 | ... TUBE; CYL. | | |
| 1B | 0140808 | ... BUSHING | | |
| 2 | 4286783 | .. ROD; PISTON ASS'Y | 1 | |
| 2A | 0410002 | ... ROD; PISTON | | |
| 2B | 0208326 | ... BUSHING; PIN | | |
| 3 | 0410003 | .. HEAD; CYL. | | |
| 4 | 0310504 | .. BUSHING | | |
| 5 | 0240904 | .. RING; RETAINING | | |
| 6 | 0409605 | .. RING | | |
| 7 | 0240911 | .. U-RING | | |
| 8 | 0240912 | .. RING; BACK-UP | | |
| 9 | 0409613 | .. RING; WIPER | 1 | |
| 9 | 0409614 | .. RING; WIPER | | |
| 10 | A811105 | .. O-RING | 1 | |
| 11 | 0298904 | .. RING; BACK-UP | | |
| 12 | 0408805 | .. BOLT; SOCKET | | |
| 13 | 0410004 | .. BRG.; CUSHION | | |
| 14 | 0409110 | .. BOLT | | |
| 15 | 0409007 | .. PISTON | | |
| 16 | 0240915 | .. RING; SEAL ASS'Y | | |
| 17 | 0409008 | .. RING; BACK-UP | | |
| 18 | 0410005 | .. RING | | |
| 19 | 0298907 | .. RING | | |
| 20 | 0409010 | .. SHIM | | |
| 21 | 0409011 | .. NUT | | |
| 22 | 0309011 | .. SCREW; SET | | |
| 23 | 0111707 | .. BALL; STEEL | | |
| 37 | J75481 | .. FITTING; GREASE | 2 | |
| 38 | 4084578 | .. SEAL; DUST | 2 | |
| 39 | 4067902 | .. SEAL; DUST | 2 | |
| 56 | 0309312 | . JOINT | | |
| 57 | 0410006 | . PIPE | 1 | |
| 58 | 4506430 | . O-RING | 2 | |
| 59 | 0158855 | . BOLT; SOCKET | | |
| 60 | 0409018 | . BAND | | |
| 61 | 0327410 | . BAND | | |
| 62 | 0408815 | . BOLT | | |
| 63 | 0325913 | . WASHER | | |
| 64 | 0309021 | . CLAMP; PIPE | | |
| 65 | 0309022 | . BOLT | | |
| 66 | 0208516 | . WASHER; SPRING | | |
| 100 | 4321000 | KIT; SEAL | | |
| 100 | 4369890 | KIT; SEAL | | |
