Belparts Excavator Main Pump PC200 PC220 PC240 PC270-8MO Hydraulic Main Pump 708-2L-00600 708-25-01074 708-25-01073

GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Belparts Excavator Main Pump PC200 PC220 PC240 PC270-8MO Hydraulic Main Pump 708-2L-00600 708-25-01074 708-25-01073

  • 1
  • 2
  • 3

Brand Name : Belparts

Model Number : PC200 PC220 PC240 PC270-8MO

Place of Origin : Guangdong, China

Price : negotiation

Supply Ability : 1000 Piece/Pieces per Month

Packaging Details : Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes

Product name : pump hydarulic

Model : PC200 PC220 PC240 PC270-8MO

Weight : 190KG

Brand : belparts

Package : wooden box

Part number : 708-2L-00600 708-25-01074 708-25-01073

Contact Now

Belparts Excavator main pump PC200 PC220 PC240 PC270-8MO hydraulic main pump 708-2L-00600 708-25-01074 708-25-01073



Belparts Excavator Main Pump PC200 PC220 PC240 PC270-8MO Hydraulic Main Pump 708-2L-00600 708-25-01074 708-25-01073

Appliion:Excavator
Part name:hydarulic pump
Part number:708-2L-00600 708-25-01074 708-25-01073
Model:PC200 PC220 PC240 PC270-8MO
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts



Appliion Excavator
Part name hydarulic pump
Part number 708-2L-00600 708-25-01074 708-25-01073
Model PC200 PC220 PC240 PC270-8MO
MOQ 1PC
Material Steel
Payment term T/T, Western union, paypal, trade assurance or as required
Weight 190KG
Brand Belparts

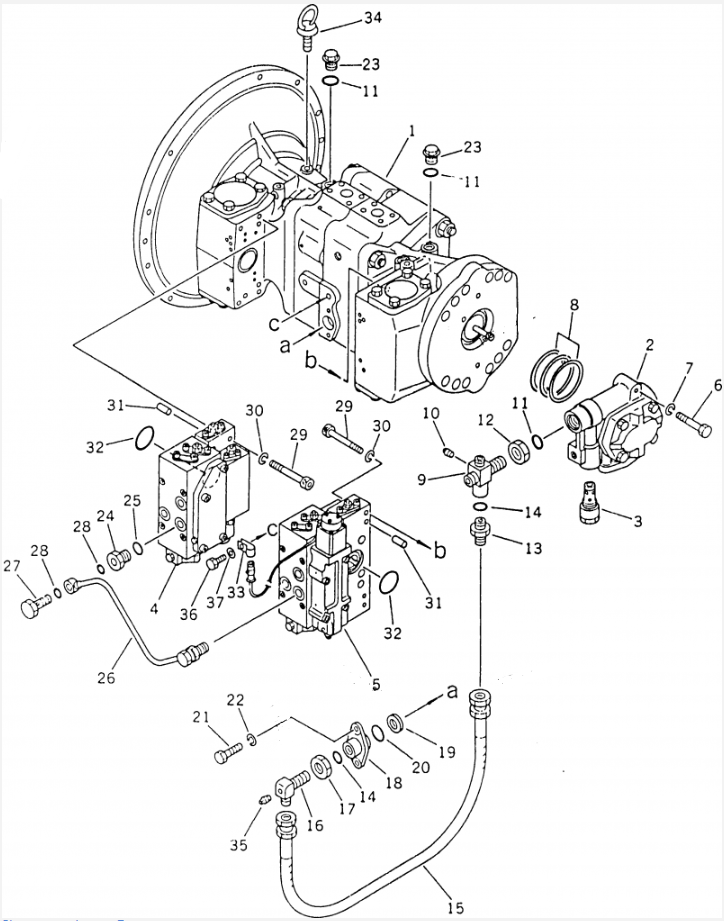

# Part No Part Name Qty. Price request
1 708-25-01074 PUMP ASS'Y 1
1 708-25-01073 PUMP ASS'Y 1
1 708-25-01072 PUMP ASS'Y 1
1 708-25-01071 PUMP ASS'Y 1
1 708-25-01070 PUMP ASS'Y 1
1 708-25-30100 HYDRAULIC PUMP ASS'Y 1
1 (708-25-11100) PUMP SUB ASS'Y 1
2 (704-24-28201) PUMP ASS'Y 1
3 (708-23-14800) VALVE ASS'Y,RELIEF 1
4 (708-25-35100) SERVO VALVE ASS'Y,FRONT 1
5 (708-25-36100) SERVO VALVE ASS'Y,REAR 1
6 (01010-31260) Bolt 2
7 (01602-01236) WASHER,SPRING (SEE FIG.0202) 2
8 708-25-05030 SHIM KIT 1
8   Shim 2
8   Shim 2
8   Shim 1
9 708-25-19111 JOINT 1
10 07042-20108 PLUG,(FOR W/O. CORROSION RESISTOR) 1
11 07002-02434 O-RING,DRAIN PLUG? R.H. HALF TANK 5
12 07239-12410 NUT (ITL) 1
13 07230-10422 UNION,(WITH POWER TILT) 1
14 07002-02034 O-RING,(NOT USED WHEN (B) SPEC.) 2
15 07102-20404 HOSE,INLET 1
16 07231-20422 Elbow 1
17 07239-12009 NUT,(FOR LONG LEVER CONTROL) 1
18 708-25-19120 Flange 1
19 720-68-15240 Filter 1
20 07000-02021 O-RING,WATER PIPING 1
21 01010-30820 BOLT,(SANDY? DUSTY TERRAIN SPEC.) 2
22 01602-00825 WASHER,SPRING?(SANDY AND DUSTY SPEC.) 2
23 07044-02412 PLUG,MAGNETIC 3
24 706-46-53260 Plug 2
25 07002-01423 O-RING,(CRUSHER?OTHER ATT.FOR PPC CON 2
26 708-25-19140 Tube 1
27 706-46-53180 BOLT,JOINT 2
28 07000-02012 O-RING, BETWEEN VALVE AND PUMP 4
29 (708-25-19130) Bolt 8
30 (01602-00825) WASHER,SPRING (SEE FIG.0331 OR 0331A) 8
31 (04020-00616) PIN,SEE FIG. K4010-71A0 4
32 (07000-03048) O-ring 2
33 08036-21814 CLIP,(FOR SLAG HANDLING) (FOR USA) 1
34 04530-01018 BOLT, EYE 2
35 07042-20108 PLUG,(FOR W/O. CORROSION RESISTOR) 1
36 01010-31016 BOLT,(SANDY AND DUSTY SPEC.) 1
37 01643-31032 WASHER,(WITH AUTO EMERGENCY STEERING) 1



# Part No Part Name Qty. Price request
1 708-2L-00600 PUMP ASS'Y 1
    THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-11A0
1 708-2L-01600 PUMP SUB ASS'Y 1
1 (*708-2L-06440) CASE ASS'Y,FRONT 1
1   CASE,FRONT 1
2   Plug 32
3 07000-B1009 O-ring 1
4 07044-12412 PLUG,MAGNETIC 1
5 07002-62434 O-RING,(F2370-57A0 -42 ) 1
6 04530-11222 BOLT, EYE - LIFTING 1
7 708-8E-16150 Plug 3
8 07002-61023 O-RING,(F3320-66A2 -26 ) 3



Belparts Excavator Main Pump PC200 PC220 PC240 PC270-8MO Hydraulic Main Pump 708-2L-00600 708-25-01074 708-25-01073Belparts Excavator Main Pump PC200 PC220 PC240 PC270-8MO Hydraulic Main Pump 708-2L-00600 708-25-01074 708-25-01073Belparts Excavator Main Pump PC200 PC220 PC240 PC270-8MO Hydraulic Main Pump 708-2L-00600 708-25-01074 708-25-01073Belparts Excavator Main Pump PC200 PC220 PC240 PC270-8MO Hydraulic Main Pump 708-2L-00600 708-25-01074 708-25-01073

company model three

Belparts Excavator Main Pump PC200 PC220 PC240 PC270-8MO Hydraulic Main Pump 708-2L-00600 708-25-01074 708-25-01073Belparts Excavator Main Pump PC200 PC220 PC240 PC270-8MO Hydraulic Main Pump 708-2L-00600 708-25-01074 708-25-01073



GZ YUEXIANG ENGINEERING MACHINERY LTD

GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.


Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. And by now, our products sell well all over the world and the current exporting countries and regions has more than 120.

With a stable production, strict quality control and strong supply capacity, most of our parts can be shipped in 1-2 days, we sell many parts to the world and get reputations from our clients.



FAQ
1.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.

2.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
