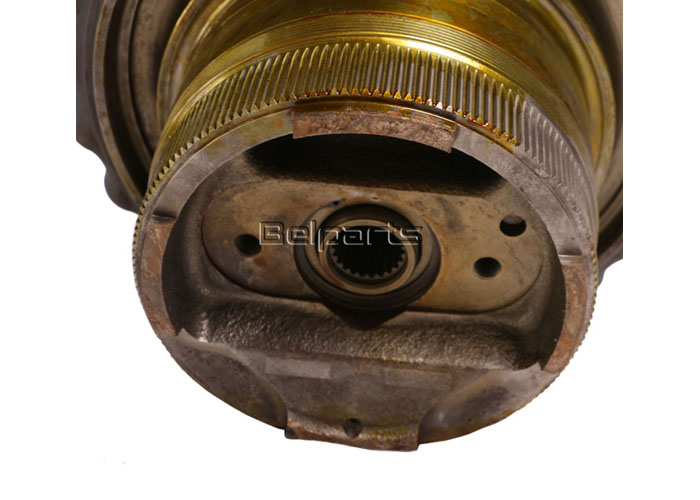

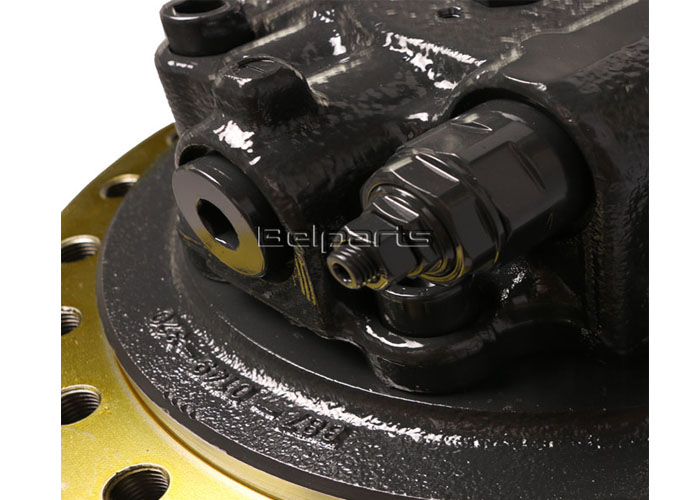

Final drive motor PC300-7-8 708-8H-00320 Travel Motor in high quality
| Product name | PC300-7-8 708-8H-00320 Travel motor in high quality |
| Place of Origin: | China(mainland) |
| Model: | PC300-7-8 |
| Part number: | 708-8H-00320 |
| MOQ: | 1 PCS |
| Payment term: | T/T & Paypal& trade assurence |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |

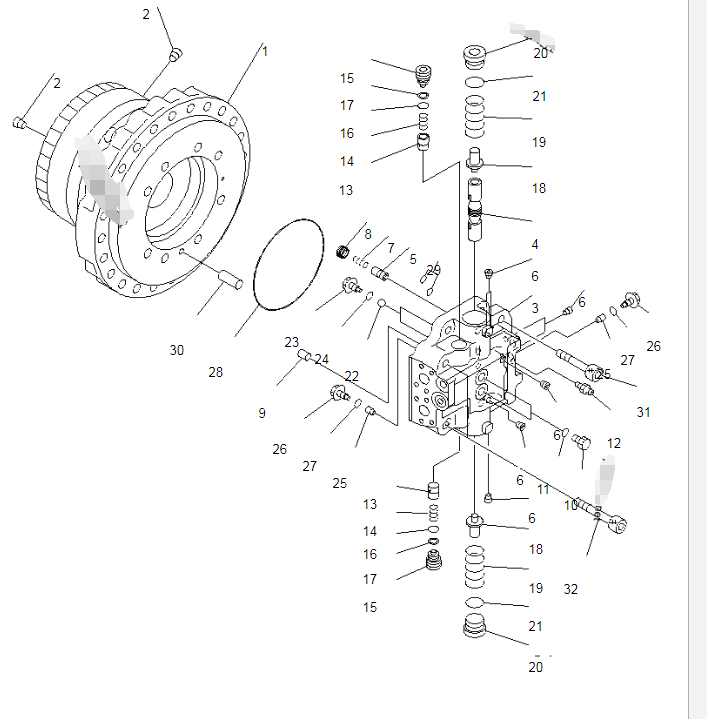

| Part Name | Qty. | Price request |
| 1 | 708-8H-00320 | MOTOR ASS'Y | 1 | |
| | | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1641-01A0 TO Y1641-03A0 | | |
| 1 | (*708-8H-04711) | CASE SUB ASS'Y | 1 | |
| 1 | | CASE,MOTOR | 1 | |
| 2 | | Plug | 2 | |
| 3 | (*708-8H-04721) | END COVER SUB ASS'Y | 1 | |
| 3 | | COVER,END | 1 | |
| 4 | | Spool | 1 | |
| 5 | | Spool | 1 | |
| 6 | | Plug | 7 | |
| 7 | | Spring | 1 | |
| 8 | | Plug | 1 | |
| 9 | (*706-75-42820) | PIN,DOWEL | 1 | |
| 10 | 708-8H-11530 | Plug | 2 | |
| 11 | 07002-11423 | O-RING,(FOR 2ND TRAVEL SPEED) (OP) | 2 | |
| 12 | 20B-27-11210 | Bleeder | 1 | |
| 13 | 706-73-72420 | Bushing | 2 | |
| 14 | 706-73-72440 | Spring | 2 | |
| 15 | 708-8H-36150 | Plug | 2 | |
| 16 | 07000-12018 | O-RING, DIVIDER VALVE MOUNTING | 2 | |
| 17 | 07001-02018 | RING, BACK-UP | 2 | |
| 18 | 706-78-71160 | Piston | 2 | |
| 19 | 708-8H-36121 | Spring | 2 | |
| 20 | 708-8H-16141 | Plug | 2 | |
| 21 | 07002-13634 | O-RING,SEE FIG. K4010-65A0 | 2 | |
| 22 | (*04260-00793) | Ball | 2 | |
| 23 | (*706-8E-14110) | Plug | 2 | |
| 24 | (*07002-11023) | O-ring | 2 | |
| 25 | 708-8E-16180 | Valve | 2 | |
| 26 | (*708-8E-16160) | Plug | 2 | |
| 27 | (*07002-11023) | O-ring | 2 | |
| 28 | (*708-8H-31210) | O-ring | 1 | |
| 29 | (*07000-12012) | O-RING (ITL) | 2 | |
| 30 | (*04020-01228) | PIN, DOWEL | 1 | |
| 31 | (*01252-62055) | Bolt | 6 | |
| 32 | (*01252-62095) | Bolt | 2 | |
