31qa-10010 Hyundai Pump Assy For Crawler Excavator R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9

Brand Name : Belparts

Model Number : R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9

Place of Origin : Guangdong, China

Price : negotiation

Supply Ability : 1000 Piece/Pieces per Month

Packaging Details : Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes

Product name : Hydraulic Pump

Model : R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9

Weight : 76KG

Brand : Hitachi

Package : wooden box

Part number : 31qa-10010

Contact Now

31qa-10010 Hyundai Pump Assy For Crawler Excavator R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9

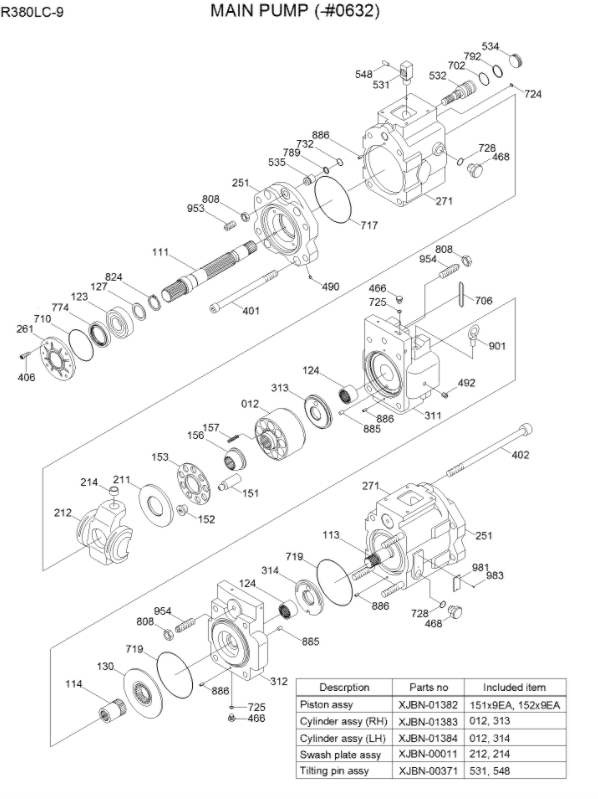

Parts on group MAIN PUMP (-#0632):

Pos. Part No Qty Parts name
*. 31QA-10010 [1] PUMP ASSY
*-1. @ [1] MAIN PUMP UNIT
*. 31QA-10010 [1] PUMP ASSY
*-1. @ [1] MAIN PUMP UNIT
S012. XJBN-00680 [2] BLOCK-CYLINDER
111 XJBN-00574 [1] SHAFT-DRIVE(F)
113 XJBN-00573 [1] SHAFT-DRIVE(R)
114 XJBN-00572 [1] COUPLING-SPLINE
123 XJBN-00571 [2] BEARING-ROLLER
124 XJBN-00570 [2] BEARING-NEEDLE
127 XJBN-00569 [3] SPACER-BEARING
130 XJBN-00568 [1] BOOSTER
NS151. XJBN-00681 [18] PISTON
NS152. XJBN-01385 [18] SHOE
153 XJBN-00020 [2] PLATE-SET
156 XJBN-00564 [2] BUSHING-SPHERICAL
157 XJBN-00541 [18] SPRING-CYLINDER
211 XJBN-00023 [2] PLATE-SHOE
S212. XJBN-00012 [2] PLATE-SWASH
S214. XJBN-00013 [2] BUSHING-TILTING
251 XJBN-00560 [2] SUPPORT-S.P.
261 XJBN-00025 [1] COVER(FR)-SEAL
271 XJBN-01386 [2] CASING-PUMP
311 XJBN-00559 [1] COVER-VALVE(F)
312 XJBN-00558 [1] COVER-VALVE(R)
S313. XJBN-01387 [1] PLATE(R)-VALVE
S314. XJBN-01388 [1] PLATE(L)-VALVE
401 XJBN-00028 [4] SCREW
402 XJBN-00555 [4] SCREW-HEX SOC HD
406 XJBN-00029 [4] SCREW-HEX
466 XJBN-00030 [4] PLUG
468 XJBN-00031 [4] PLUG
490 XJBN-00032 [28] PLUG
492 XJBN-00234 [1] PLUG
492 XJBN-00234 [1] PLUG
NS531. XJBN-00369 [2] PIN-TILTING
532 XJBN-00033 [2] PISTON-SERVO
534 XJBN-00034 [2] STOPPER(L)
535 XJBN-00035 [2] STOPPER(S)
NS548. XJBN-00360 [2] PIN-FEED BACK
702 XJBN-00040 [2] O-RING
706 XJBN-00554 [1] O-RING
710 XJBN-00041 [1] O-RING
717 XJBN-00042 [2] O-RING
719 XJBN-00043 [3] O-RING
724 XJBN-00361 [19] O-RING
725 XJBN-00362 [6] O-RING
706 XJBN-00554 [1] O-RING
728 XJBN-00363 [4] O-RING
732 XJBN-00047 [2] O-RING
774 XJBN-00906 [1] SEAL-OIL
789 XJBN-00049 [2] RING-BACK UP
792 XJBN-00050 [2] RING-BACK UP
808 XJBN-00364 [4] NUT-HEX
824 XJBN-00052 [2] RING-SNAP
885 XJBN-00053 [2] PIN 2
886 XJBN-00054 [5] PIN-SPRING
901 XJBN-00055 [2] BOLT-EYE
953 XJBN-00056 [2] SCREW-SET
954 XJBN-00553 [2] SCREW-SET
981 XJBN-00156 [1] NAME PLATE
983 XJBN-00341 [2] PIN
*-2. @ [1] REGULATOR ASSY
*-3. @ [1] REGULATOR ASSY
*-4. @ [1] GEAR PUMP
S011. XJBN-01382 [2] PISTON ASSY
S013. XJBN-01383 [1] CYLINDER ASSY-RH
S014. XJBN-01384 [1] CYLINDER ASSY-LH
*-3. @ [1] REGULATOR ASSY
S030. XJBN-00011 [2] SWASH PLATE ASSY
S530. XJBN-00371 [2] TILTING PIN SUB ASSY
S011. XJBN-01382 [2] PISTON ASSY
S013. XJBN-01383 [1] CYLINDER ASSY-RH
S014. XJBN-01384 [1] CYLINDER ASSY-LH
S030. XJBN-00011 [2] SWASH PLATE ASSY
S530. XJBN-00371 [2] TILTING PIN ASSY
N. @ [AR] NOT SUPPLIED PARTS
