Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

Brand Name : Belparts

Model Number : R300-9

Place of Origin : Guangdong, China

Price : negotiation

Supply Ability : 1000 Piece/Pieces per Month

Packaging Details : Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes

Product name : swing gearbox

Model : R300-9

Weight : 343KG

Brand : Hyundai

Package : 61X62x63

Part number : 39Q8-12100 31Q8-10141 31Q8-11141

Contact Now

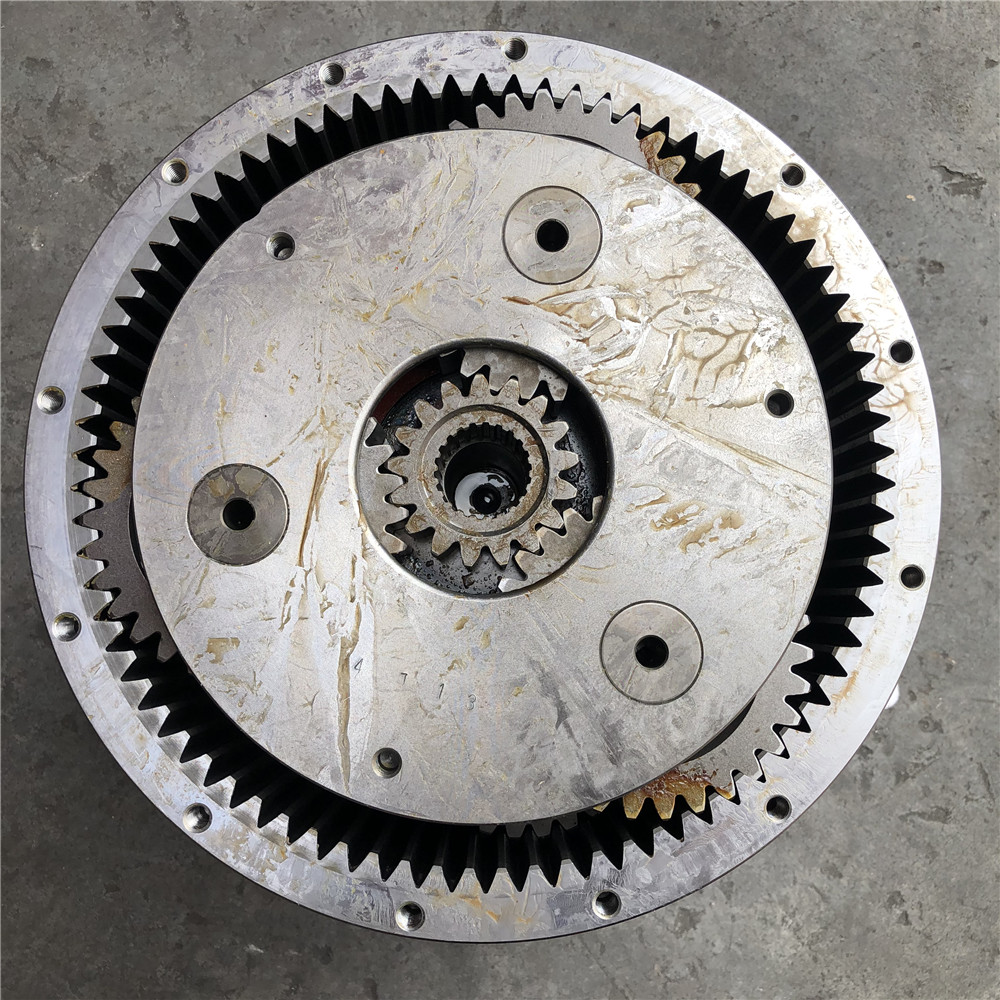

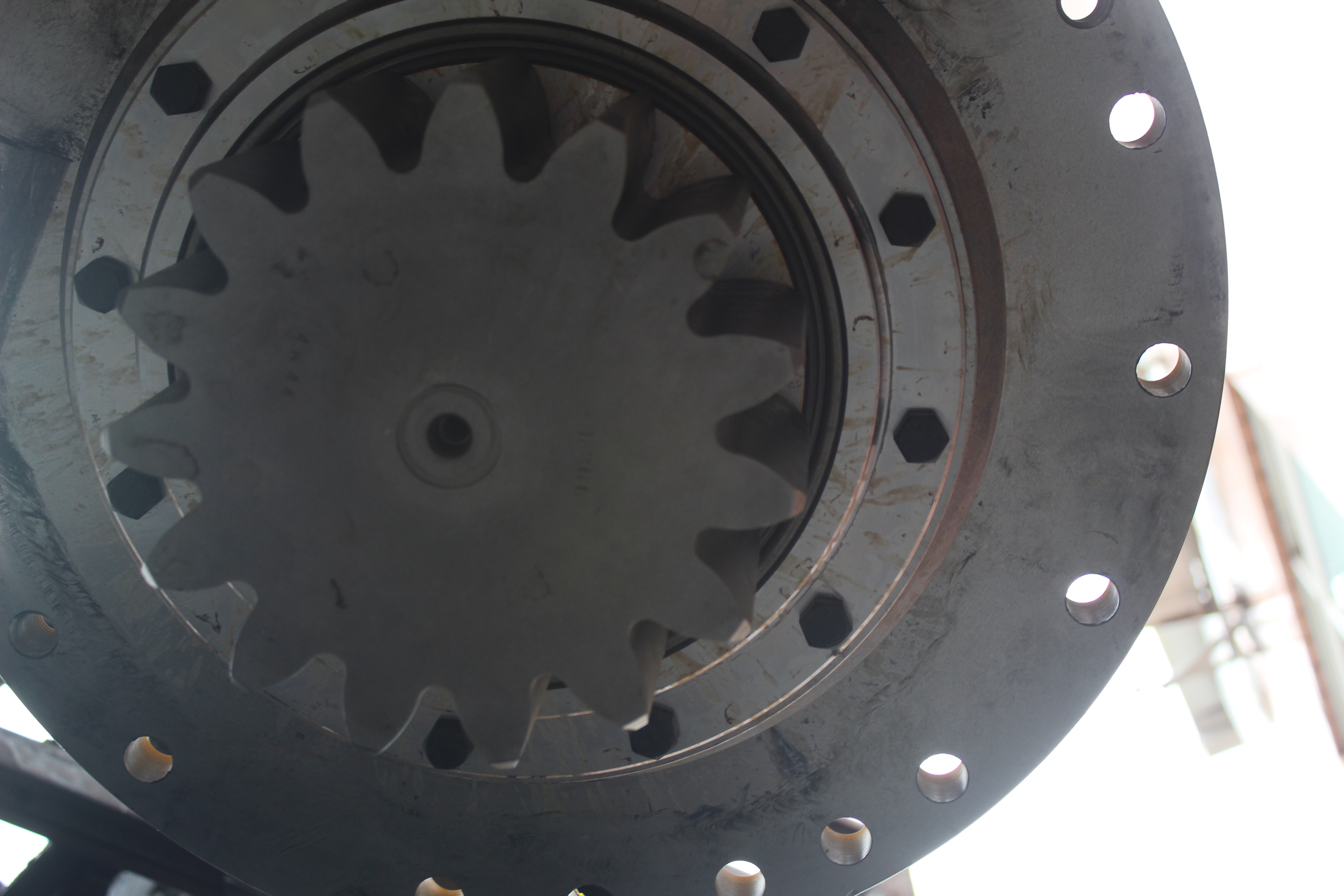

Excavator machine swing gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 swing reduction assy

Product parameter:



Product name

swing gearbox

Weight

343KG

Model:

R300-9

Part number:

39Q8-12100 31Q8-10141 31Q8-11141

Brand:

Hyundai

Package:

61X62x63

Delivery time:

Within 2 days after receiving the payment


Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction AssyExcavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

Excavator Machine Swing Gearbox R300-9 39Q8-12100 31Q8-10141 31Q8-11141 Swing Reduction Assy

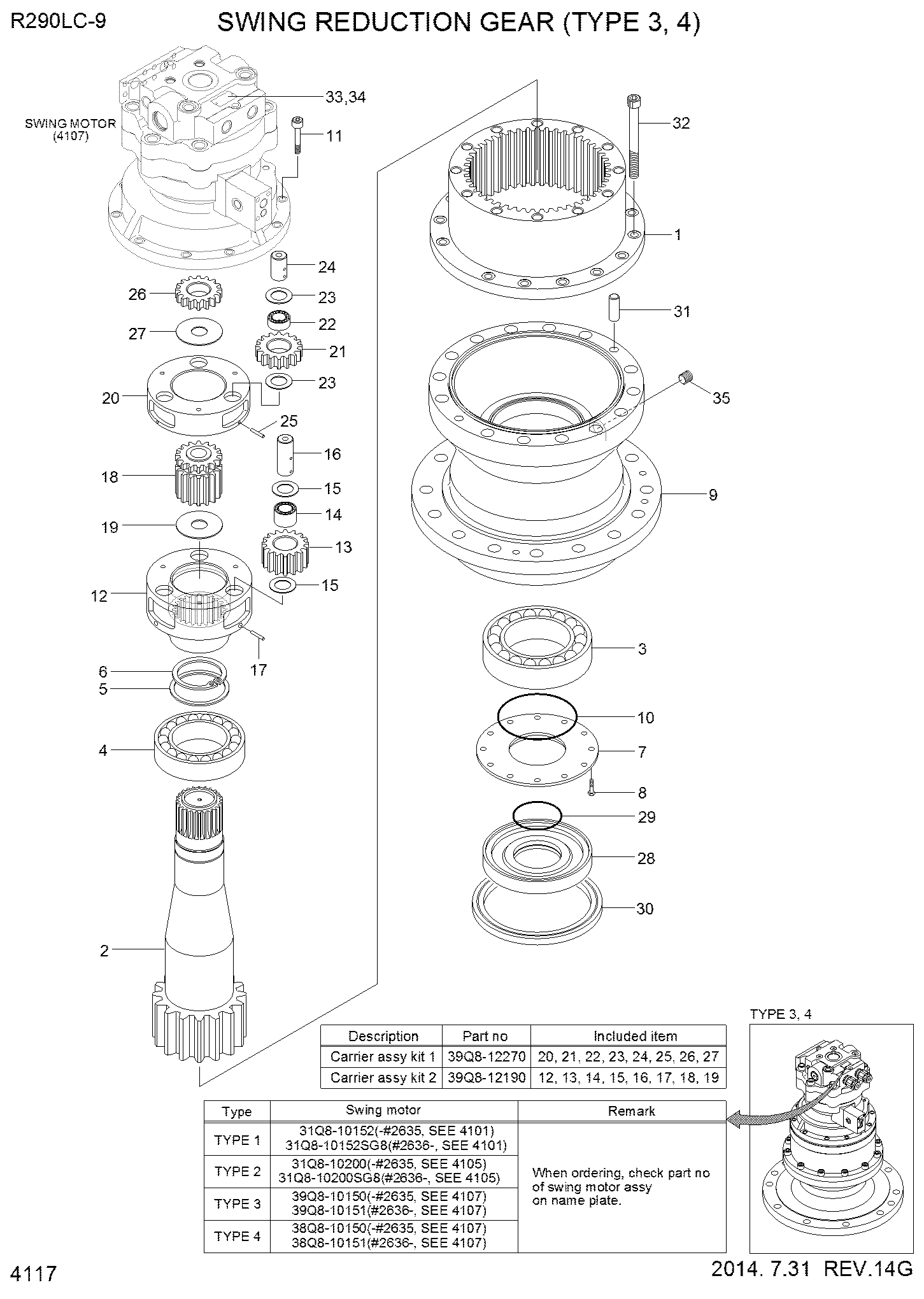

Parts on group SWING REDUCTION GEAR (TYPE 3, 4):

Pos. Part No Qty Parts name Comments
*-2. 39Q8-12100 [1] SWING REDUCTION GEAR SEE 4107
*-2. 39Q8-12101 [1] SWING REDUCTION GEAR SEE 4107
1. 39Q8-12110 [1] GEAR RING
2. 39Q8-12120 [1] SHAFT-DRIVE
3. 39Q8-12130 [1] BEARING-SPH.ROLLER
4. 39Q8-12140 [1] BEARING-SPH.ROLLER
5. 39Q8-12150 [1] PLATE-THRUST
6. 39Q8-12160 [1] RING-SNAP
7. 39Q8-12170 [1] COVER
8. S017-120306 [12] BOLT-HEX
9. 39Q8-12180 [1] CASING
10. S632-290001 [1] O-RING
11. S109-100306 [12] BOLT-SOCKET
K12. 39Q8-12201 [1] CARRIER NO.2
K13. 39Q8-12211 [4] GEAR-PLANETARY NO.2
K14. 39Q8-12220 [4] BEARING-NEEDLE NO.2
K15. 39Q8-12231 [8] WASHER-THRUST NO.2
K16. 39Q8-12240 [4] PIN-CARRIER NO.2
K17. S472-910404 [4] PIN-SPRING
K18. 39Q8-12251 [1] GEAR-SUN NO.2
K19. 39Q8-12261 [1] PLATE-THRUST NO.2
K20. 39Q8-12281 [1] CARRIER NO.1
K21. 39Q8-12291 [3] GEAR-PLANETARY NO.1
K22. 39Q8-12300 [3] BEARING-NEEDLE NO.1
K23. 39Q8-12311 [6] WASHER-THRUST NO.1
K24. 39Q8-12320 [3] PIN-CARRIER NO.1
K25. S472-800404 [3] PIN-SPRING NO.1
K26. 39Q8-12331 [1] GEAR-SUN NO.1
K27. 39Q8-12341 [1] PLATE-THRUST NO.1
28. 39Q8-12350 [1] SLEEVE
29. S632-140001 [1] O-RING
30. 39Q6-12350 [1] SEAL-OIL
31. 39Q6-41450 [2] PIN-PARALLEL
32. S109-18050D [14] BOLT-SOCKET
33. 39Q8-12360 [1] NAME PLATE
34. 39Q6-41800 [2] RIVET
35. P220-430204 [1] PLUG-HEX
K. 39Q8-12190 [1] CARRIER ASSY NO.2 SEE ILLUST
K. 39Q8-12270 [1] CARRIER ASSY NO.1 SEE ILLUST

Product Tags:

R300-9 Swing Gearbox



31Q8-10141 Swing Gearbox



39Q8-12100 Swing Gearbox
