Model Number : 374DL 374D

Certifiion : OEM

Place of Origin : Made in China

MOQ : 1 piece

Price : Negotiable price

Payment Terms : T/T, Paypal and Trade Assurance

Supply Ability : 1000pieces

Delivery Time : 1-7days

Packaging Details : Wooden packing

Model Name : Swing gearbox assy

Model : 374DL 374D

Material : Steel

Part number : 296-6146 296-6147

Packing : wooden case or customized

Contact Now

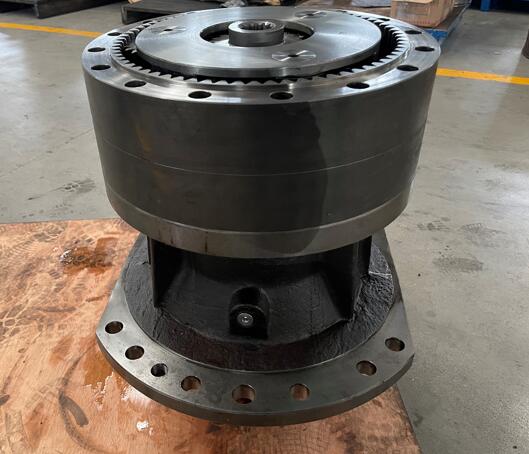

Excavator parts 374DL 374D 296-6146 296-6147 Swing Gearbox

Appliion	Excavator
Part name	swing gearbox assy
Material	Steel
Model	374DL 374D
MOQ	1PC
Payment term	296-6146 296-6147
Delivery	2 days after the payment received
Shipment	by sea, by air, by express, or as required

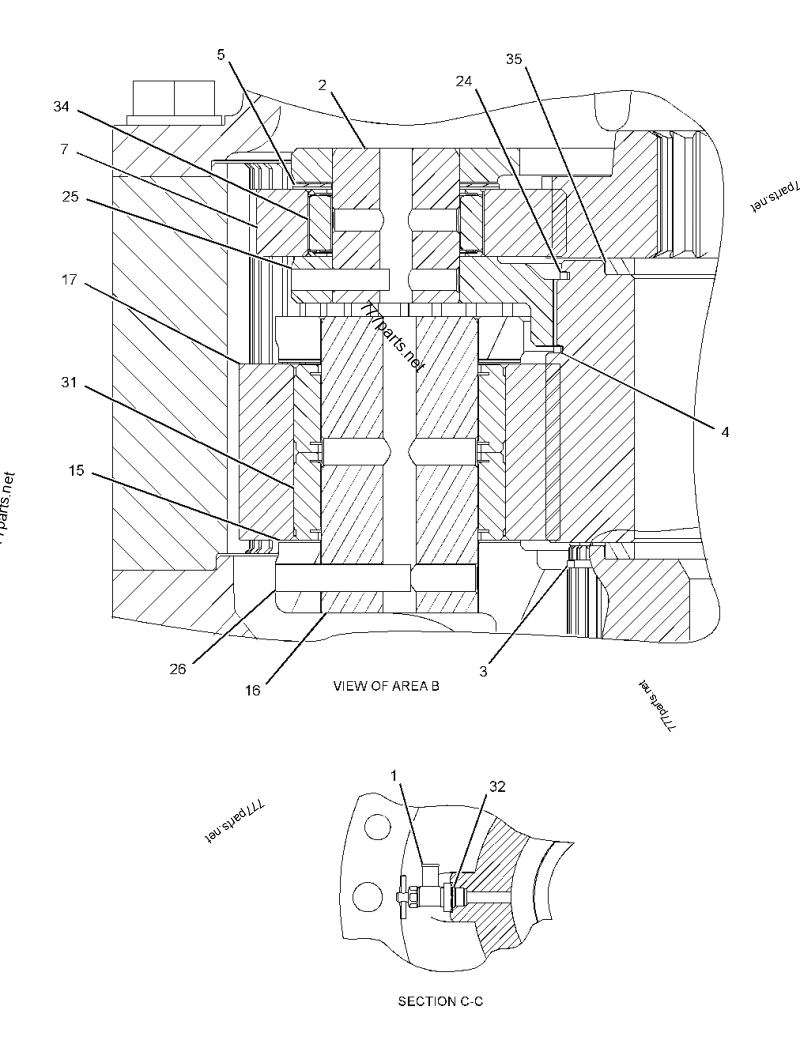

Excavator Parts 374DL 374D 296-6146 296-6147 Swing Gearbox

#	Part No	Part Name	Qty.
1	6V7238	VALVE-SHUTOFF (ENGINE OIL PAN DRAIN)	1
2	7Y0225	SHAFT - PLANETARY	3
3	0931730	RING (RETAINING)	1
4	0940574	RING-RETAINING	1
5	0940611	WASHER (47.3X76X1-MM THK)	6
6	0962653	RING (RETAINING)	1
7	1107053	GEAR-PLANETARY (23-TEETH)	3
8	1362889	GEAR-SUN (23-TEETH)	1
9	1362890	COVER-HOUSING	1
10	1362891	CARRIER-PLANETARY	1
11	1362893	SPACER-SPECIAL	1
12	1362894	HOUSING	1
13	1362896	GEAR-RING (70-TEETH)	1
14	1362897	GEAR-SUN (22-TEETH)	1
15	1362898	WASHER (58.3X89X1-MM THK)	8
16	1362899	SHAFT-PLANETARY	4
17	1362901	GEAR-PLANETARY (23-TEETH)	4
18	1362941	CAGE	1
19	1484645	GAUGE-OIL LEVEL (SWING DRIVE)	1
20	1484646	PIPE-GAUGE	1
21	2276221	BREATHER AS (SWING DRIVE)	1
	4H6112	BREATHER (TORQUE CONVERTER)	1
	2276215	BOSS (1/4-18-THD)	1
	2676785	FITTING	1
22	2676914	SHAFT-PINION	1
23	2966229	CARRIER-PLANETARY	1
24	0931731	RING - RETAINING	1
25	0950891	PIN - SPRING	3
26	0995194	PIN-SPRING	4
27	1359044	SEAL (LIP TYPE)	2
28	1362904	BEARING	1
29	1362940	BEARING	1
30	1362942	SEAL-O-RING	1
31	2976841	BEARING-ROLLER	8
32	3K0360	SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN	1
33	7X2569	BOLT (M20X2.5X200-MM)	16
34	7Y0252	BEARING AS. - ROLLER	3
35	7Y0595	SPACER (58X79.6X6-MM THK)	2
36	8T4123	WASHER-PLATED (22X35X3.5-MM THK)	16
37	8T4183	BOLT (M12X1.75X40MM) (M12X1.75X40-MM)	10
38	8T4223	WASHER-HARD (13.5X25.5X3-MM THK)(BOLT TO SHIELD)	10
39	1U8846	SEALANT (FOR LOIONS A)
		USE AS REQUIRED
		METRIC PART
