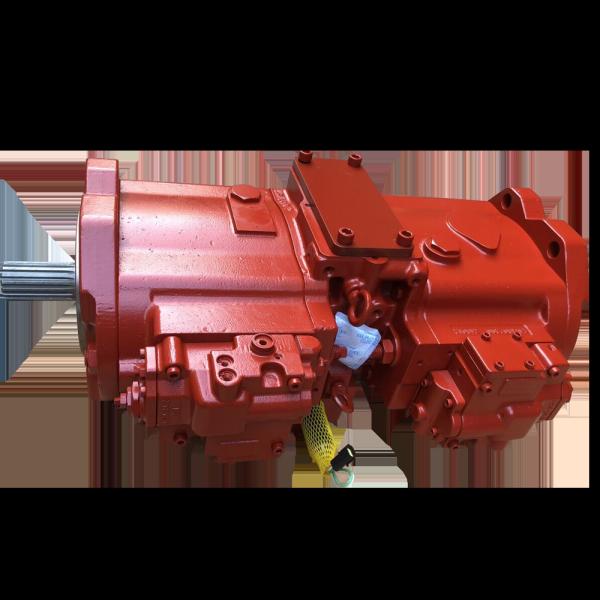

Excavator K5V160DTP 1142-06230 hydraulic pump EC460 R455 main pump parts
Product Description
| Model NO. | K5V160DTP-9N-17T 1142-06230 |
| Description | Direct Factory Manufacture Hydraulic pump for EC460 R455 Excavator |
| Brand name | Belparts |
| Color | As the photo |
| Appliion | excavator |
| Condition | 100% brand new |
| Warranty | 1 Year |
| Packing | standard packing(fiberboad carton/wooden case)or as customzied |
| Payment term | T/T, PayPal,Alipay..etc. |
| Shipment | 1~7days after getting the payment,but not for the customzied item |
| Remark | Any more detailed information about the product,pls donot hestate to inquiry with us.Also welcime to visitour company or factory if you have free time.We will be appriciate for that. Thank you. |

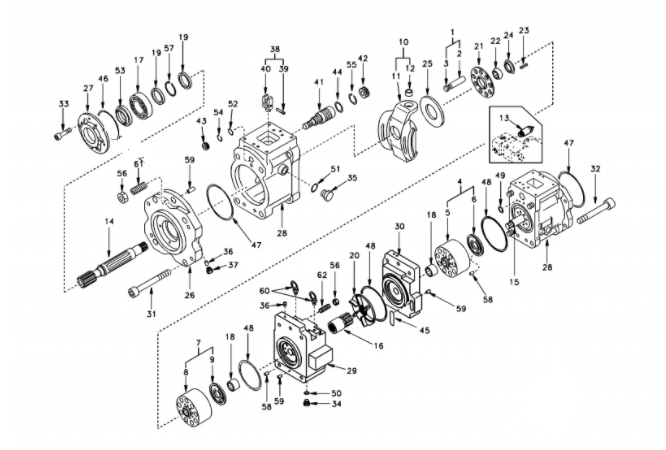

List of spare parts
| # | Part No | Part Name | Qty. |
| DJ00A001 |
| | SA 1142-06230 | Pump | 1 |
| 1 | SA 8230-14510 | Piston | 2 |
| 2 | SA 14502322 | Piston | 9 |
| 3 | SA 14502323 | Seat | 9 |
| 4 | SA 8230-09880 | Cylinder | 1 |
| 5 | SA 14502321 | Block | 1 |
| 6 | SA 14502324 | Plate | 1 |
| 7 | SA 8230-09890 | Cylinder | 1 |
| 8 | SA 14502321 | Block | 1 |
| 9 | SA 14502325 | Plate | 1 |
| 10 | SA 8230-09810 | Support | 2 |
| 11 | SA 7223-00220 | Plate | 1 |
| 12 | SA 7223-00240 | Bushing | 1 |
| 13 | SA 8230-32080 | Valve | 1 |
| 14 | SA 8230-09110 | Shaft | 1 |
| 15 | SA 8230-09010 | Shaft | 1 |
| 16 | SA 8230-09360 | Joint | 1 |
| 17 | SA 8230-26640 | Roller Bearing | 2 |
| 18 | SA 8230-26710 | Needle Bearing | 2 |
| 19 | SA 8230-08850 | Spacer | 3 |
| 20 | SA 8230-09090 | Booster | 1 |
| 21 | SA 7242-10210 | Plate | 2 |
| 22 | SA 8230-10330 | Bushing | 2 |
| | VOE 14510070 | Bushing | 2 |
| 23 | SA 8230-09840 | Spring | 18 |
| 24 | SA 8230-09850 | Spacer | 2 |
| 25 | SA 7223-00210 | Plate | 2 |
| 26 | SA 8230-08960 | Support | 2 |
| 27 | SA 8230-35460 | Cover | 1 |
| 28 | SA 8230-32160 | Body | 2 |
| 29 | SA 8230-08990 | Cover | 1 |
| 30 | SA 8230-09000 | Cover | 1 |
| 31 | SA 8230-35490 | Bolt | 4 |
| 32 | SA 8230-09900 | Bolt | 4 |
| 33 | SA 9016-10804 | Bolt | 4 |
| 34 | SA 9415-11021 | Plug | 4 |
| 35 | SA 9415-11051 | Plug | 4 |
| 36 | SA 7242-11040 | Plug | 32 |
| 37 | SA 8230-27740 | Plug | 5 |
| 38 | SA 8230-09780 | Pin | 2 |
| 39 | SA 7223-00400 | Pin | 1 |
| 40 | SA 7223-00570 | Pin | 1 |
| 41 | SA 8230-35450 | Piston | 1 |
| 42 | SA 8230-35480 | Stop | 2 |
| 43 | SA 8230-35470 | Stop | 2 |
| 44 | SA 7223-00590 | O-ring | 2 |
| 45 | SA 9511-22060 | O-ring | 1 |
| 46 | SA 9511-22105 | O-ring | 1 |
| 47 | SA 8230-26210 | O-ring | 2 |
| 48 | SA 7223-00600 | O-ring | 3 |
| 49 | SA 9511-12008 | O-ring | 15 |
| 50 | SA 9511-12011 | O-ring | 10 |
| 51 | SA 9511-12024 | O-ring | 4 |
| 52 | SA 7223-00700 | O-ring | 2 |
| 53 | SA 7223-00710 | Seal | 1 |
| 54 | SA 8230-26840 | Ring | 2 |
| 55 | SA 8230-26830 | Ring | 2 |
| 56 | SA 9111-12000 | Nut | 4 |
| 57 | SA 9541-01045 | Snap Ring | 2 |
| 58 | SA 7242-10560 | Pin | 2 |
| 59 | SA 7223-00660 | Spring Pin | 5 |
| 60 | SA 8230-25460 | Eye Bolt | 2 |
| 61 | SA 7223-00670 | Set Screw | 2 |
| 62 | SA 7223-00680 | Set Screw | 2 |
| 100 | VOE 14502342 | Sealing Kit | 1 |
