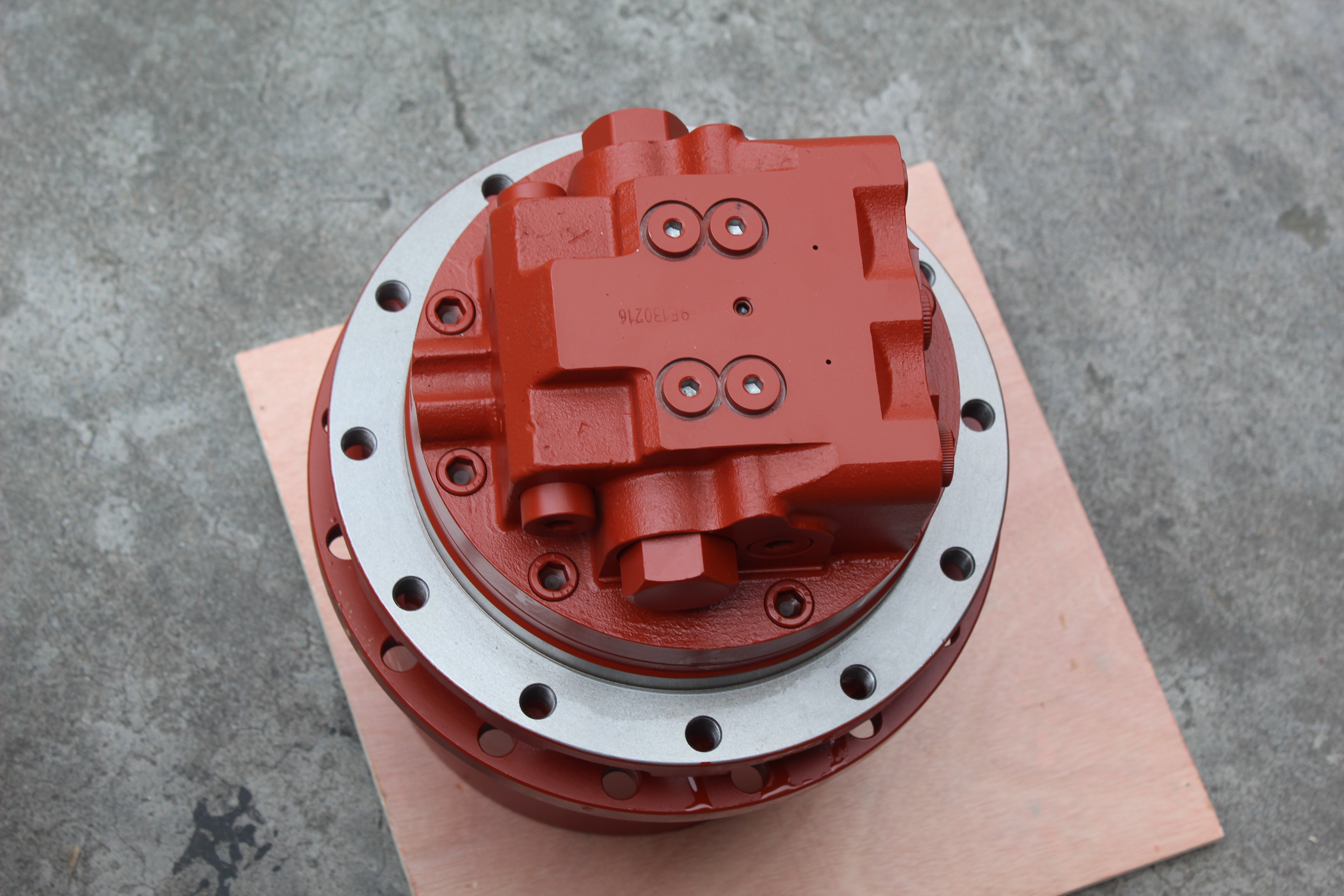

Excavator travel motor assy TM09VC GM09VC PC60-5 PC60-7 PC80-6 final drive gear
| Appliion | Excavator |
| Part name | Final drive |
| Material | Steel |
| Model | PC60-5 PC60-7 PC80-6 PC80-8 GM09VC TM09VC Final Drive |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T,Paypal, trade assurance |
| Delivery Time | Within 2 days after receiving the payment |
| Packing | Standard shipping package |
List of spare parts
| # | Part No | Part Name | Qty. |
| 1 | 201-60-51101 | TRAVEL MOTOR ASS'Y | 2 |
| 1 | 201-60-51100 | TRAVEL MOTOR ASS'Y | 2 |
| 1 | TZ880A2101-A | FLANGE SPOOL ASS'Y | 1 |
| 1 | | FLANGE,REAR | 1 |
| 2 | | Spool | 1 |
| 3 | TZ861A2052-00 | STOPPER,SPRING | 2 |
| 4 | TZ880A2057-00 | Spring | 2 |
| 5 | TZ860A2056-00 | Spring | 2 |
| 6 | TZ860A2051-00 | Plug | 2 |
| 7 | TZJB2401-P26-9 | O-RING (KIT) | 2 |
| 8 | TZ860A2054-01 | Valve | 2 |
| 9 | TZ860A2055-01 | Spring | 2 |
| 10 | TZ860A2053-01 | Plug | 2 |
| 11 | 07000-12016 | O-RING,SUCTION AND RELIEF VALVE | 2 |
| 12 | TZ860A2019-00 | Valve | 1 |
| 13 | TZ860A2020-01 | Spring | 1 |
| 14 | TZ860A2018-00 | SEAT,VALVE | 1 |
| 15 | TZ100A2022-00 | RING,SNAP | 1 |
| 16 | 07000-11009 | O-RING,(FOR DUAL TILT DOZER) | 1 |
| 17 | TZ100A2021-00 | Plug | 1 |
| 18 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 1 |
| 19 | TZJB1354-4-10 | Parallel pin | 2 |
| 20 | TZJB1354-8-25 | Parallel pin | 2 |
| 21 | TZ880A2002-00 | Shaft | 1 |
| 22 | TZ880A2029-00 | BEARING,BALL | 1 |
| 23 | 06000-06203 | BEARING,BALL | 1 |
| 24 | TZ15Z-22-42-10 | SEAL,OIL (KIT) | 1 |
| 25 | TZ880A2004-00 | BLOCK,CYLINDER | 1 |
| 26 | TZNR025168 | ROLLER,NEEDLE | 3 |
| 27 | TZ85A2003-1G | PLATE,SWASH | 1 |
| 28 | TZ800A2017-00 | Pin | 1 |
| 29 | TZ860A2030-01 | PISTON SHOE ASS'Y | 1 |
| 29 | | Piston | 9 |
| 30 | | SHOE,PISTON | 9 |
| 31 | TZ850A2007-01 | PLATE,RETAINER | 1 |
| 32 | TZ860A2009-01 | TIMING PLATE | 1 |
| 33 | TZ880A2008-00 | BALL,THRUST | 1 |
| 34 | TZ880A2011-00 | Washer | 1 |
| 35 | TZ880A2014-00 | Spring | 1 |
| 36 | TZ880A2010-00 | Washer | 2 |
| 37 | TZIRTW42 | RING,SNAP | 1 |
| 38 | TZ880A2012-00 | Piston | 1 |
| 39 | TZ880A2013-00 | Spring | 8 |
| 40 | 07000-12140 | SEAL, O-RING | 1 |
| 41 | TZW1516-G28-9 | O-RING (KIT) | 1 |
| 42 | TZSUN-2BG140 | RING,BACK-UP (KIT) | 1 |
| 43 | TZSUN-2WG28 | RING,BACK-UP (K1) | 1 |
| 44 | TZ800A2015-00 | FRICTION DISK | 1 |
| 45 | TZ800A2016-00 | Plate | 1 |
| 46 | 01252-31030 | Screw | 6 |
| 47 | TZCM1-8 | Plug | 2 |
